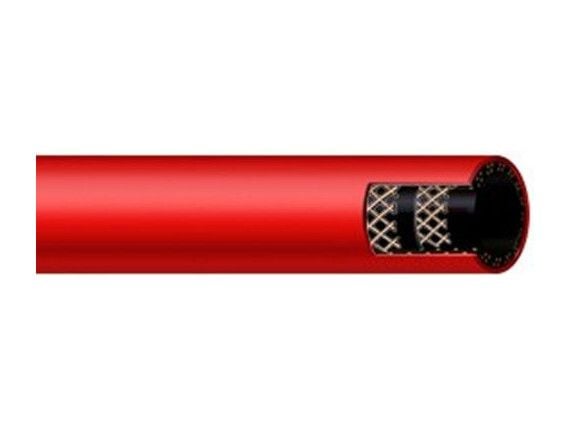

Rubber Standard Steam Hose
Item Code: 2685
Softwall steam hose, textile reinforced, recommended for use with saturated steam at a maximum working pressure of 6 bar [90psi] and handling temperatures up to 165 deg.C. For longer life, drain after use.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| D503-012 | 1/2" | 13 | 23.0 | 90 | 270 | 0.29 | 20-60-120 |
| D503-019 | 3/4" | 19 | 29.0 | 90 | 270 | 0.39 | 20-60-120 |
| D503-025 | 1" | 25 | 37.0 | 90 | 270 | 0.59 | 20-60-120 |
| D503-032 | 1 1/4" | 32 | 46.5 | 90 | 270 | 0.89 | 20-60-120 |
| D503-038 | 1 1/2" | 38 | 54.0 | 90 | 270 | 1.17 | 20-60-120 |
| D503-050 | 2" | 51 | 68.0 | 90 | 270 | 1.63 | 20-60-120 |
