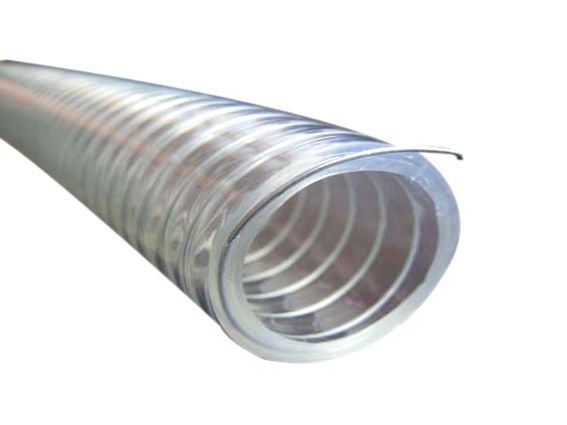

Clear Pvc With Steel Helix
Item Code: 2760
Manufactured for the suction and delivery of liquids where product visibility is required. Commonly used in the food industry. A flexible and U.V. resistant hose.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|
| SHARMA006 | 1/4" | 6 | 12.0 | 99 | 0.13 | 60 |
| SHARMA010 | 3/8" | 10 | 16.0 | 99 | 0.16 | 60 |
| SHARMA012 | 1/2" | 12 | 18.0 | 85 | 0.18 | 60 |
| SHARMA016 | 5/8" | 16 | 22.4 | 85 | 0.25 | 60 |
| SHARMA019 | 3/4" | 20 | 27.0 | 71 | 0.35 | 60 |
| SHARMA025 | 1" | 25 | 33.0 | 71 | 0.50 | 60 |
| SHARMA032 | 1 1/4" | 32 | 41.0 | 57 | 0.65 | 60 |
| SHARMA040 | 1 1/2" | 38 | 47.0 | 57 | 0.80 | 30 |
| SHARMA050 | 2" | 50 | 60.0 | 57 | 1.25 | 30 |
| SHARMA063 | 2 1/2" | 64 | 76.0 | 43 | 1.80 | 30 |
| SHARMA075 | 3" | 76 | 89.0 | 43 | 2.20 | 30 |
| SHARMA100 | 4" | 102 | 116.0 | 28 | 3.25 | 20 |
| SHARMA125 | 5" | 127 | 145.0 | 17 | 5.40 | 20 |
| SHARMA150 | 6" | 150 | 170.0 | 17 | 6.90 | 20 |
