Food & Wine Suction/Delivery Hose
Item Code: 2689

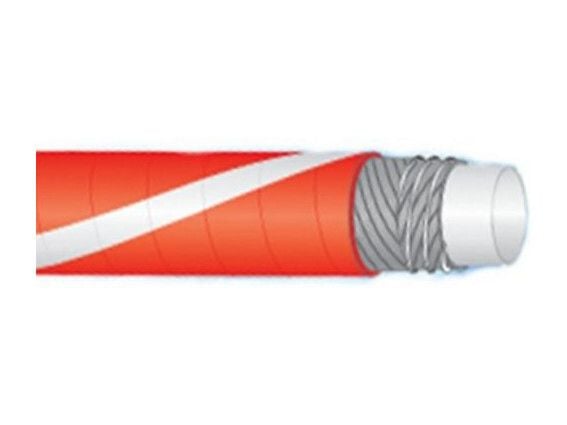

A premium food quality, suction and delivery hardwall hose designed for handling wine and alcohols up to 95C. Specifically designed for use in breweries and distilleries. Not suitable for fatty foods. Red synthetic weather resistant cover with a white smooth EPDM food quality tube, incorporating high strength synthetic cord and steel wire helix reinforcing.
| Product Code | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|
| D606-019 | 19.1 | 32.0 | 150 | 450 | 0.90 | 20 | 60 |
| D606-025 | 25.4 | 38.0 | 150 | 450 | 0.95 | 20 | 60 |
| D606-032 | 31.8 | 46.0 | 150 | 450 | 1.35 | 20 | 60 |
| D606-038 | 38.1 | 52.0 | 150 | 450 | 1.50 | 20 | 60 |
| D606-050 | 50.8 | 66.0 | 150 | 450 | 1.91 | 20 | 60 |
| D606-063 | 63.5 | 80.0 | 150 | 450 | 2.58 | 20 | 60 |
| D606-075 | 76.2 | 93.0 | 150 | 450 | 3.61 | 20 | 60 |
| D606-100 | 101.6 | 120.0 | 150 | 450 | 4.98 | 20 | 60 |
