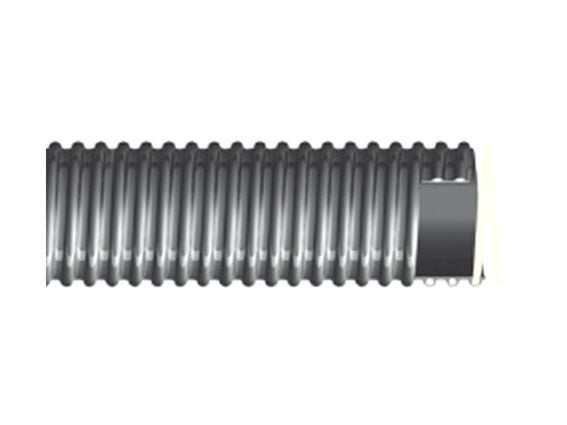

Eolo Grey Ducting
Item Code: 2783
Plasticized PVC duct with anti-shock rigid PVC spiral. Perfectly smooth inside, outside corrugated. Very light and flexible. Resistant to atmospherical agents and to most chemicals. Used for the suction of air, fumes, gas, powders, sawing, dust. Aerating and conditioning plants, and in wood working plants.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|
| J12-020 | 3/4" | 19 | 23.6 | 25 | 0.12 | 20 |
| J12-025 | 1" | 25 | 30.0 | 32 | 0.16 | 20 |
| J12-032 | 1 1/4" | 32 | 38.0 | 40 | 0.24 | 20 |
| J12-040 | 1 1/2" | 38 | 44.4 | 45 | 0.31 | 20 |
| J12-050 | 2" | 52 | 59.8 | 60 | 0.50 | 20 |
| J12-075 | 3" | 76 | 84.6 | 100 | 0.78 | 20 |
| J12-100 | 4" | 102 | 113.2 | 155 | 1.28 | 20 |
| J12-125 | 5" | 127 | 138.6 | 190 | 1.60 | 20 |
| J12-150 | 6" | 152 | 162.6 | 200 | 2.00 | 20 |
| J12-200 | 8" | 203 | 213.6 | 240 | 2.70 | 20 |
