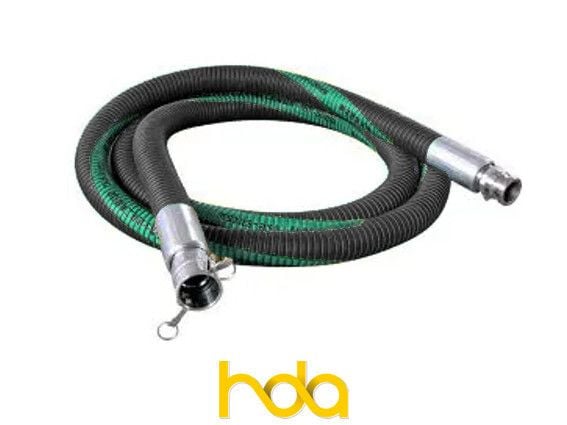

Aviator Code Flex
Item Code: 2854
Specially designed for the suction and delivery of aviation fuel. Conforms to AS2683-2000 Type 1, Grade 1.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| CHAVA-040 | 1 1/2" | 39 | 48.0 | 101.5 | 75 | 1.30 | 20 |
| CHAVA-050 | 2" | 51 | 63.0 | 87 | 90 | 1.60 | 20 |
| CHAVA-080 | 3" | 76 | 90.0 | 72.5 | 125 | 2.80 | 20 |
| CHAVA-100 | 4" | 102 | 112.0 | 58 | 200 | 4.10 | 20 |
