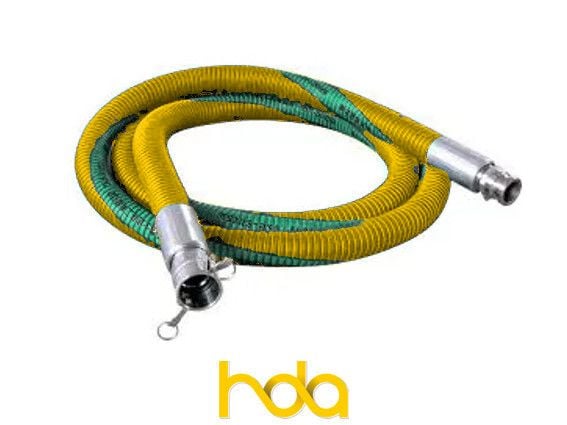

Code 1003 Fuel King Lightweight
Item Code: 2850
Super lightweight composite hose for suction and delivery of petroleum based products where ease of handling is paramount. Conforms to AS2683-2000 Type 1, Grade 3. Aluminium internal wire, Galvanised steel external wire. Colours may vary.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| CH1003-050 | 2" | 51 | 63.0 | 87 | 90 | 1.25 | 20 |
| CH1003-063 | 2 1/2" | 63 | 75.0 | 72.5 | 100 | 1.75 | 20 |
| CH1003-080 | 3" | 76 | 90.0 | 72.5 | 125 | 2.00 | 20 |
| CH1003-100 | 4" | 102 | 112.0 | 58 | 200 | 2.50 | 20 |
