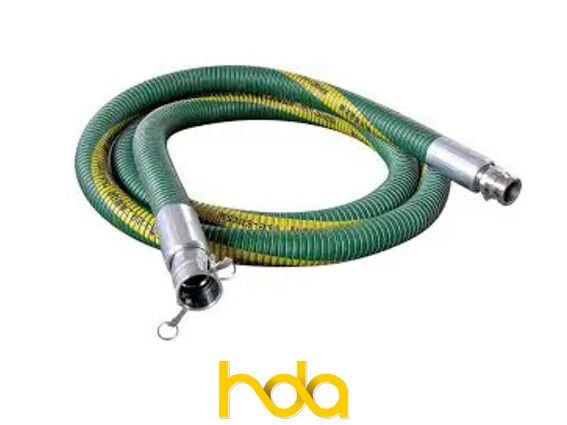

Code Flex 1000 Fuel King
Item Code: 2848
Light weight, flexible composite hose designed for suction and delivery of petroleum based products. Suitable for road and rail tankers. Internal Galvanised steel wire/External Galvanised steel wire. Conforms to AS2683-2000 Type 1 Grade 3. Colours may vary.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Bend Radius (mm) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| CH1000-025 | 1" | 25 | 32.0 | 101.5 | 60 | 0.80 | 20 |
| CH1000-032 | 1 1/4" | 32 | 38.0 | 101.5 | 75 | 1.00 | 20 |
| CH1000-038 | 1 1/2" | 39 | 48.0 | 101.5 | 75 | 1.30 | 20 |
| CH1000-050 | 2" | 51 | 63.0 | 101.5 | 90 | 1.60 | 20 |
| CH1000-063 | 2 1/2" | 63 | 75.0 | 101.5 | 100 | 2.40 | 20 |
| CH1000-080 | 3" | 76 | 90.0 | 101.5 | 125 | 2.80 | 20 |
| CH1000-100 | 4" | 102 | 112.0 | 101.5 | 200 | 4.10 | 20 |
| CH1000-150 | 6" | 152 | 170.0 | 101.5 | 400 | 7.80 | to-order |
