Rubber Water Suction & Delivery
Item Code: 2655

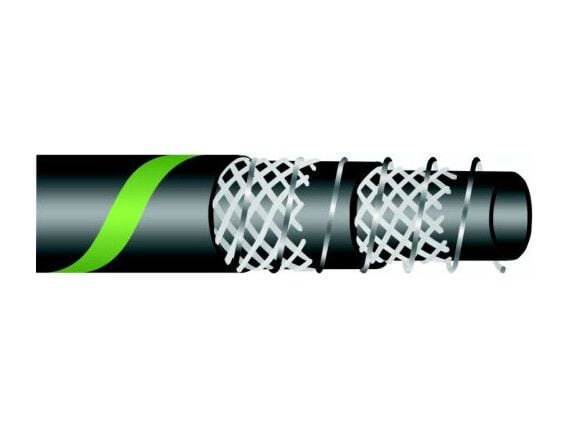

Mandrel built rubber hose designed for the transfer of water in both positive and negative pressure applications. With an abrasive resistant tube it can also be used the suction and delivery of light slurries and other light to medium abrasive materials.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| D214-019 | 3/4" | 19 | 29.0 | 150 | 450 | 0.76 | 20-60 |
| D214-025 | 1" | 25 | 36.0 | 150 | 450 | 0.95 | 20-60 |
| D214-032 | 1 1/4" | 32 | 43.0 | 150 | 450 | 1.05 | 20-60 |
| D214-038 | 1 1/2" | 38 | 49.0 | 150 | 450 | 1.30 | 20-60 |
| D214-044 | 1 3/4" | 44 | 56.0 | 150 | 450 | 1.50 | 20-60 |
| D214-050 | 2" | 51 | 63.0 | 150 | 450 | 1.92 | 20-60 |
| D214-063 | 2 1/2" | 63 | 77.0 | 150 | 450 | 2.55 | 20-60 |
| D214-075 | 3" | 76 | 89.0 | 150 | 450 | 3.10 | 20-60 |
| D214-100 | 4" | 102 | 118.0 | 150 | 450 | 4.39 | 20-60 |
| D214-125 | 5" | 127 | 146.0 | 150 | 450 | 6.98 | 20-30 |
| D214-150 | 6" | 152 | 170.0 | 150 | 450 | 8.99 | 20-30 |
| D214-200 | 8" | 204 | 223.0 | 150 | 450 | 13.61 | 12 |
| D214-250 | 10" | 254 | 282.0 | 150 | 450 | 19.74 | 12 |
| D214-300 | 12" | 305 | 335.0 | 150 | 450 | 24.41 | 12 |
