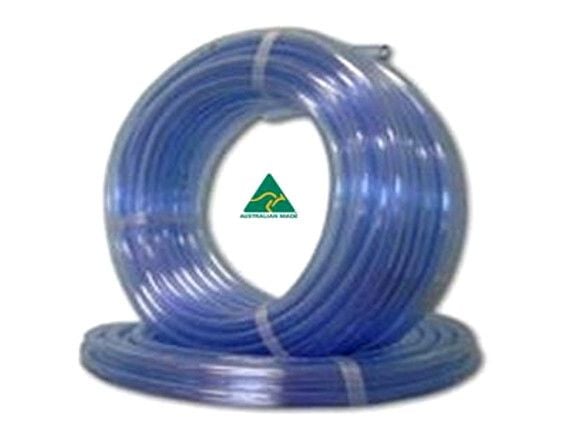

Clear Vinyl Tubing
Item Code: 2746
Non-toxic clear tube suitable for the low pressure transfer of food and beverages. Conforms to AS2070.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|
| TCVT03 | 1/8" | 3 | 5.0 | 125 | 0.02 | 30 |
| TCVT05 | 3/16" | 5 | 8.0 | 115 | 0.03 | 30 |
| TCVT06 | 1/4" | 6 | 9.0 | 90 | 0.04 | 30 |
| TCVT08 | 5/16" | 8 | 11.0 | 75 | 0.05 | 30 |
| TCVT10 | 3/8" | 10 | 13.0 | 60 | 0.07 | 30 |
| TCVT12 | 1/2" | 12.5 | 15.5 | 70 | 0.10 | 30 |
| TCVT16 | 5/8" | 16 | 20.0 | 60 | 0.13 | 30 |
| TCVT19 | 3/4" | 20 | 25.2 | 50 | 0.17 | 30 |
| TCVT25 | 1" | 25 | 31.0 | 50 | 0.27 | 30 |
| TCVT32 | 1 1/4" | 32 | 40.0 | 40 | 0.40 | 30 |
| TCVT40 | 1 1/2" | 38 | 46.0 | 40 | 0.69 | 15 |
| TCVT50 | 2" | 50 | 60.0 | 40 | 0.93 | 15 |
