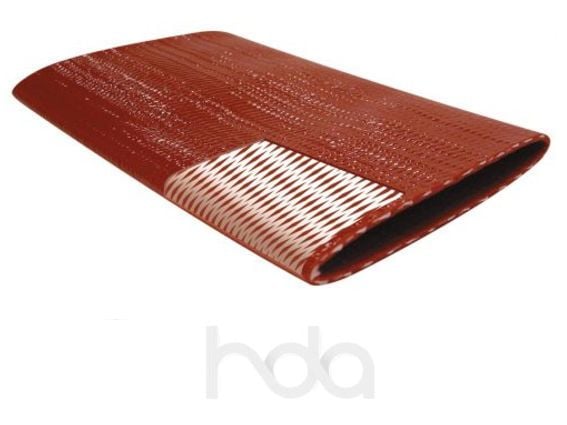

Layflat High Pressure Red
Item Code: 2884
Well suited for water drainage at open pit mining and at civil engineering/dam construction sites in mountains or other applications where water needs to be moved at significantly higher or lower elevation.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| LFHD040 | 1 1/2" | 40 | 43.6 | 152 | 456 | 0.30 | 100 |
| LFHD050 | 2" | 52.5 | 56.5 | 152 | 456 | 0.42 | 100 |
| LFHD063 | 2 1/2" | 66 | 70.2 | 152 | 456 | 0.55 | 100 |
| LFHD075 | 3" | 78.5 | 82.7 | 130 | 390 | 0.66 | 100 |
| LFHD100 | 4" | 104 | 109.0 | 130 | 390 | 1.02 | 100 |
| LFHD150 | 6" | 155 | 150.4 | 102 | 306 | 1.85 | 100 |
| LFHD200 | 8" | 207 | 213.0 | 75 | 225 | 2.20 | 100 |
