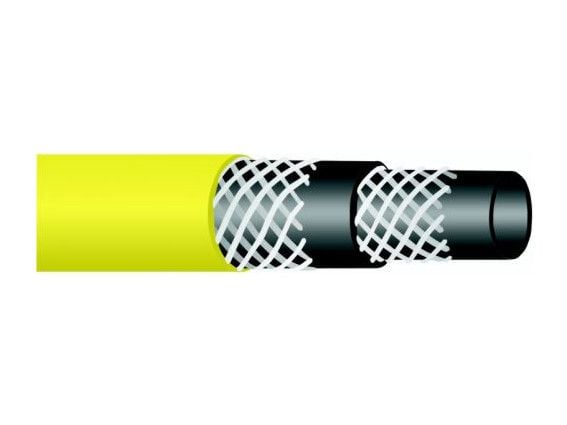

Yellow Extruded Pnuematic Air Hose
Item Code: 2621
Medium duty extruded rubber hose designed for the transfer of compressed air and water in industrial applications. Yellow weather resistant cover and black oil-mist resistant tube is an excellent and economical alternative to mandrel built hose.
| Product Code | Size | Diameter (mm) ID | Diameter (mm) OD | Working Pressure (PSI) | Burst Pressure (PSI) | Weight (kg/m) | Roll Length |
|---|---|---|---|---|---|---|---|
| D124-012 | 1/2" | 12 | 20.0 | 300 | 900 | 0.33 | 100 |
| D124-019 | 3/4" | 19 | 30.0 | 300 | 900 | 0.78 | 100 |
| D124-025 | 1" | 25 | 36.0 | 300 | 900 | 0.85 | 100 |
| D124-032 | 1 1/4" | 32 | 44.0 | 300 | 900 | 0.97 | 60 |
| D124-038 | 1 1/2" | 38 | 54.0 | 300 | 900 | 1.24 | 60 |
| D124-050 | 2" | 52 | 67.0 | 300 | 900 | 1.51 | 60 |
